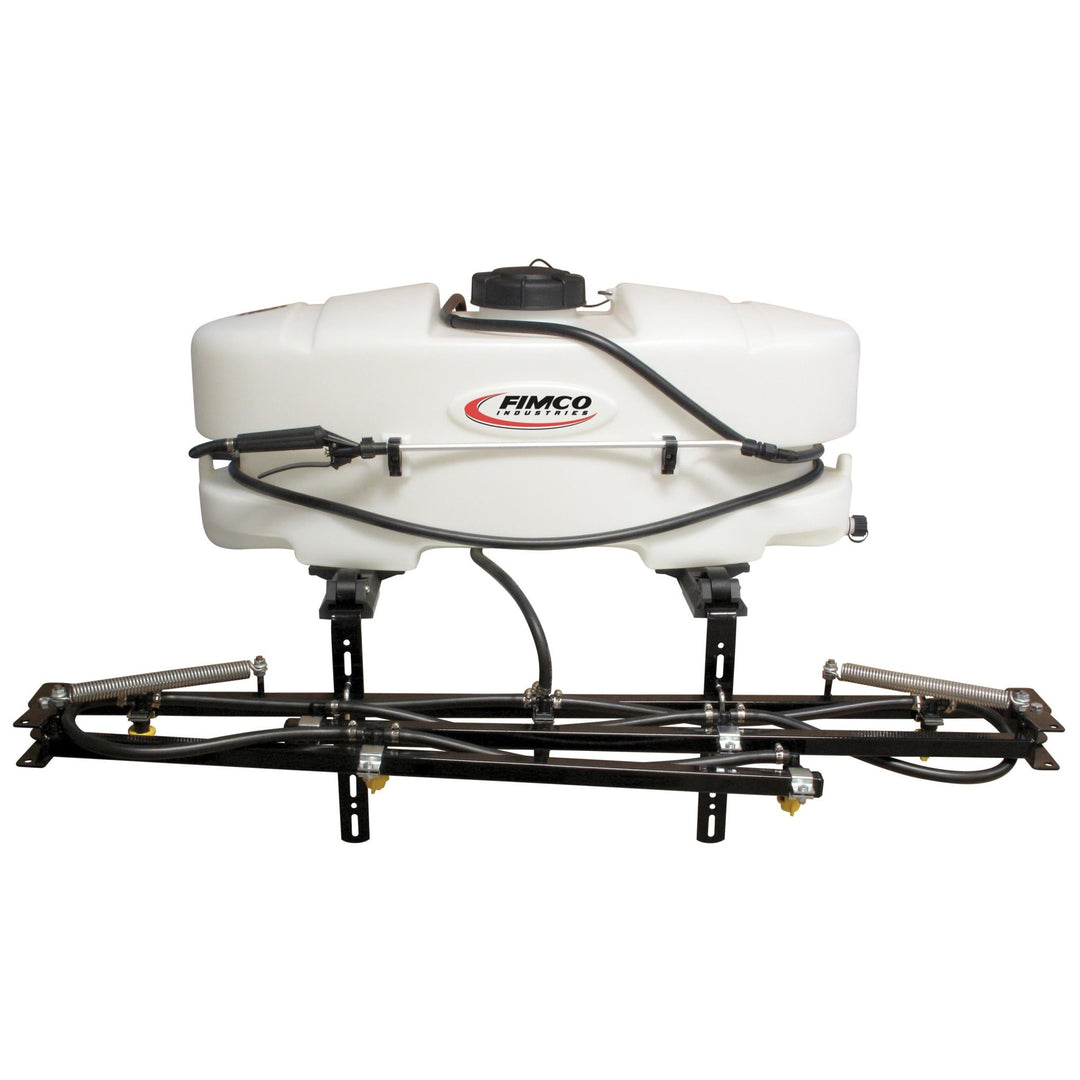

FIMCO 7 Nozzle Quad / ATV Sprayer 95L

The FIMCO 95L 7 Nozzle ATV Sprayer provides precise liquid application from our folding 7 nozzle boom. The UV resistant, molded polymer tank has a 127mm tethered lid for easy access and is completely drainable.

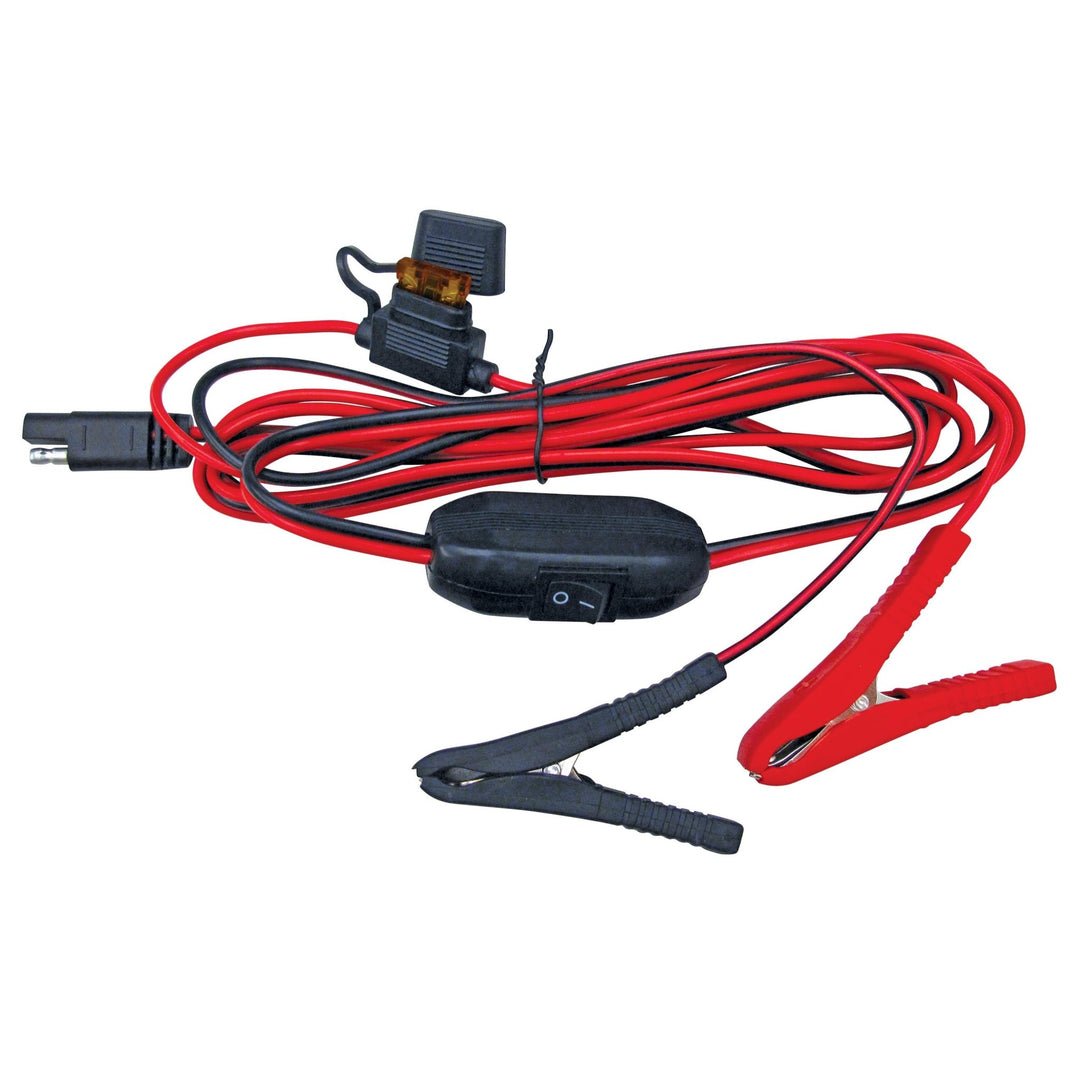

Convert from a spot sprayer to an ATV sprayer with the quick release mounting bracket, allowing for simple installation or removal of the spray boom for easy storage or handling.  This model Quad/ATV sprayer features the High Flo High Performance 9L/M 12V pump with inline fuse protection.

The Lever Spray Wand features an adjustable spray pattern poly tip which adjusts from a stream, fan or cone and distributes up to 9m of horizontal spray, 5m of vertical spray and comes with 4.5m x 10mm hose.

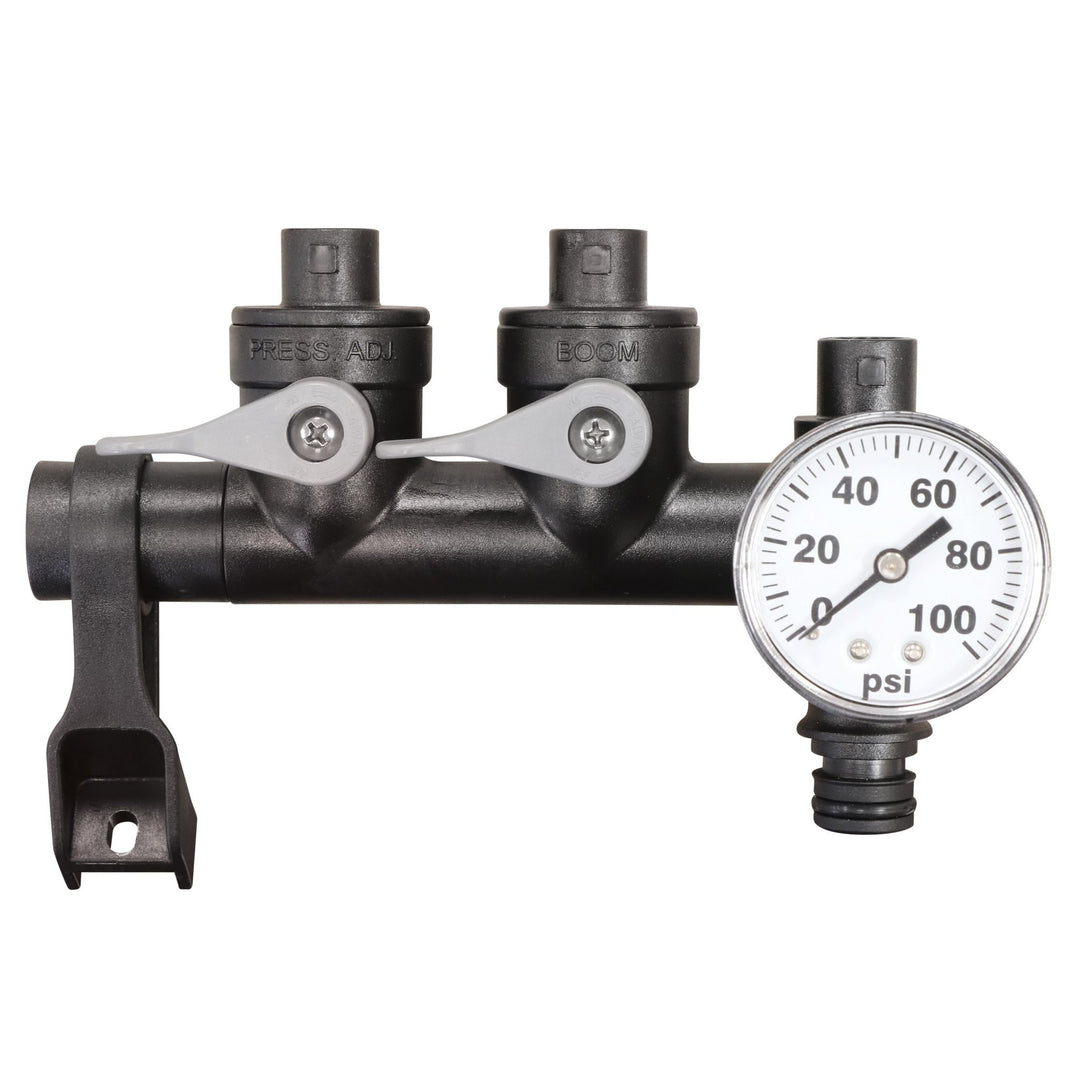

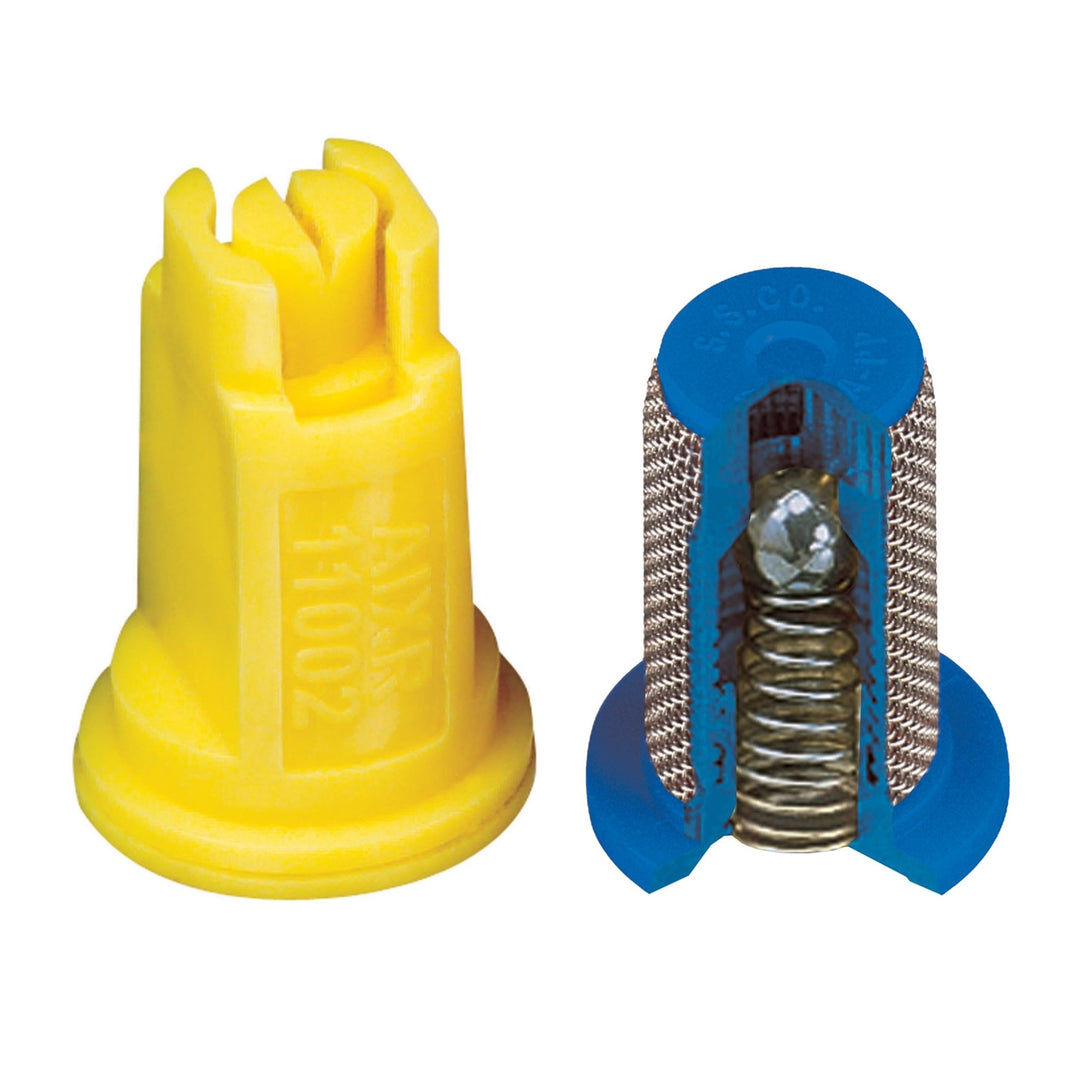

The 110 degree spray angle from TeeJet’s AIXR nozzle produces a large air filled droplet for uniform coverage in broadcast spraying. The 7 Nozzle boom offers 3.6m of total spray coverage and our FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern.

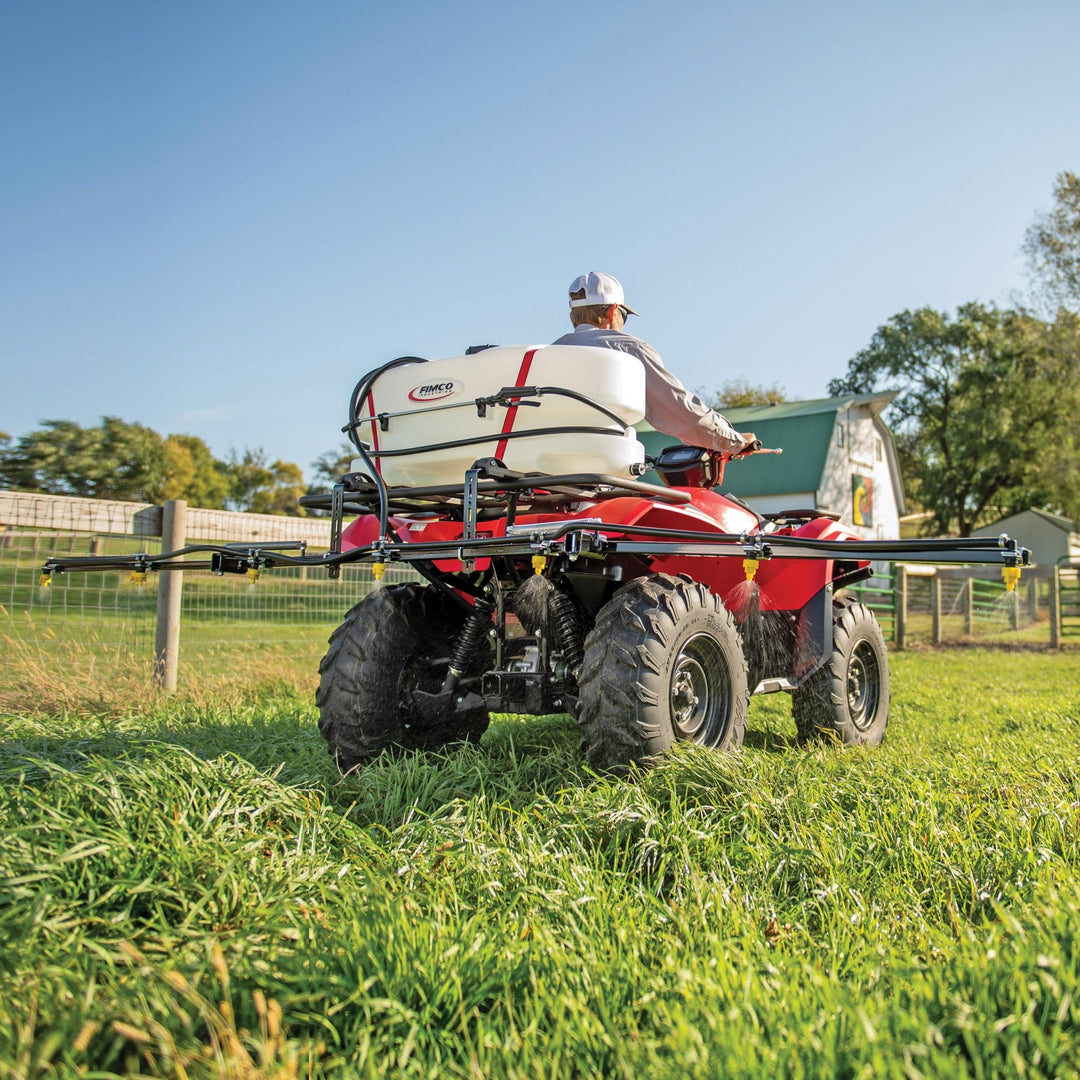

This ATV sprayer offers the versatility and efficiency needed to spray tight spaces or larger areas and allows easy, accurate and consistent liquid application of lawn care products. The best ATV sprayer for controlling weeds, insects and any unwanted pests on lawns, sports fields, parks, farms and lifestyle blocks.

Features:

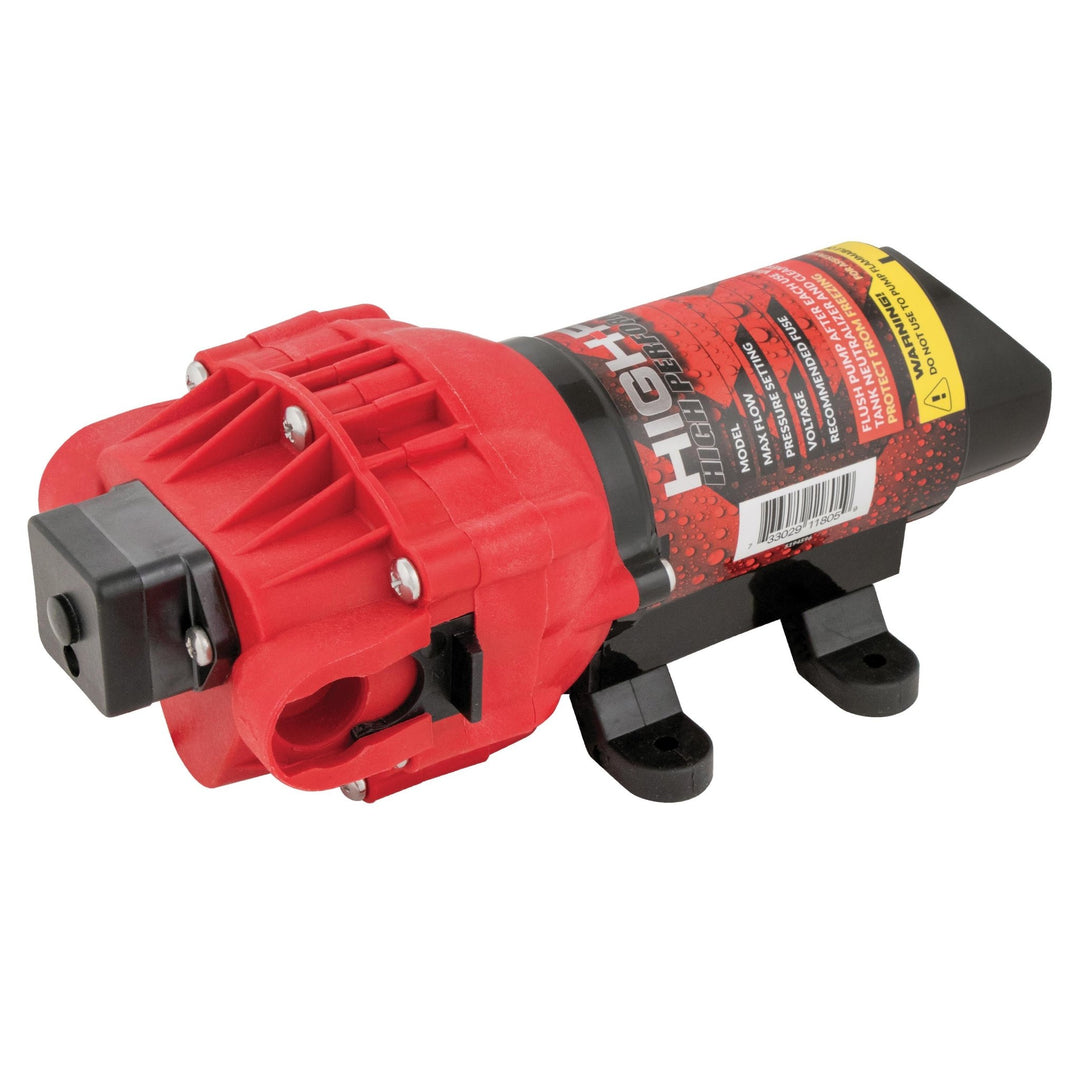

• 9L/M High Flo High Performance Pump features an internal fan cooled motor as well as chemical resistant valves and diaphragms which increase durability ensuring longer pump life
• Durable 95L blow molded, UV stabilised tank with molded drain port and 127mm tethered lid for easy filling
• Features FIMCOs exclusive quick release mounting system allowing you to quickly remove, change or store your spraying boom

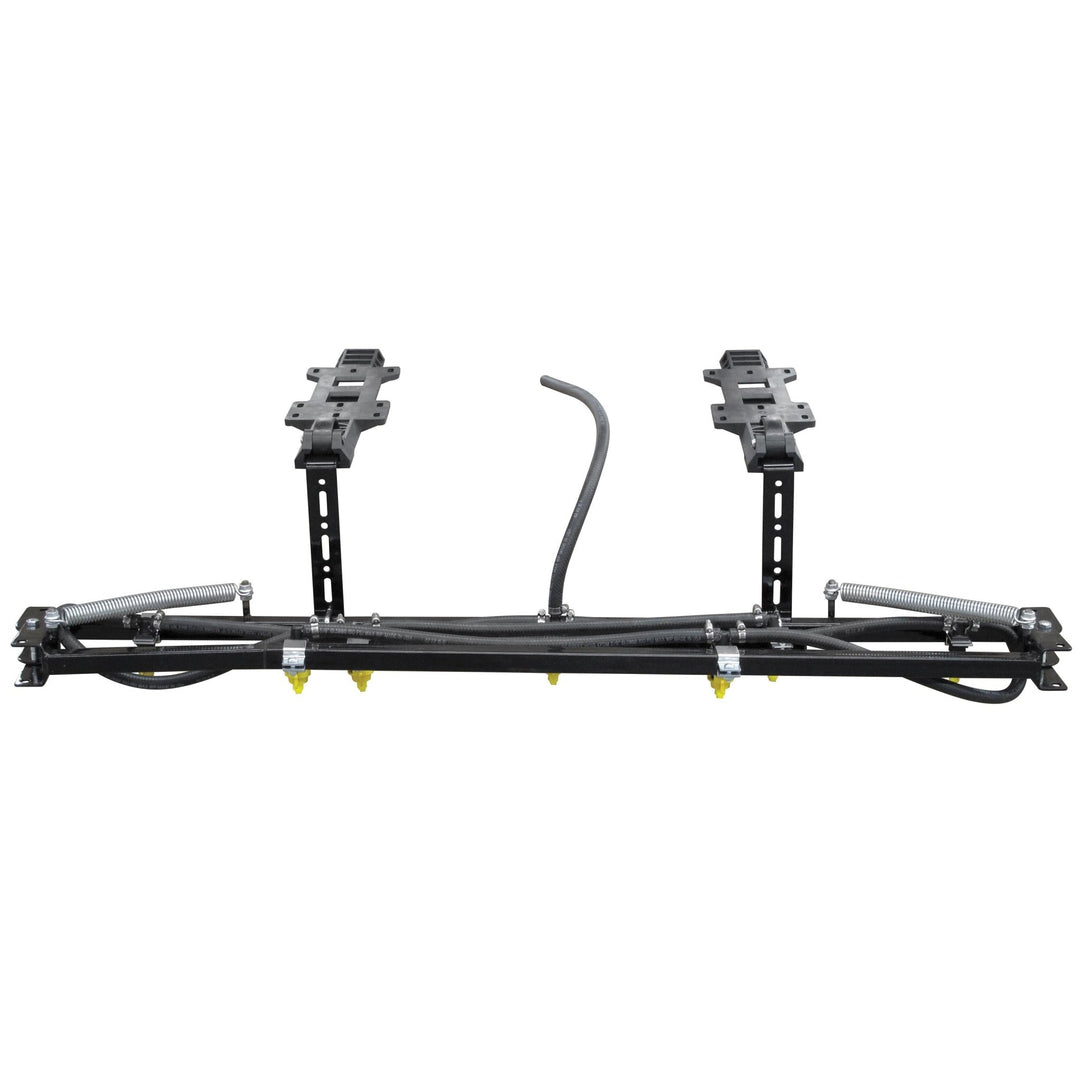

• Folding 7 nozzle welded breakaway steel boom delivers 3.6m of total spray coverage, features Teejet® tips and is spring loaded for easy deployment and storage

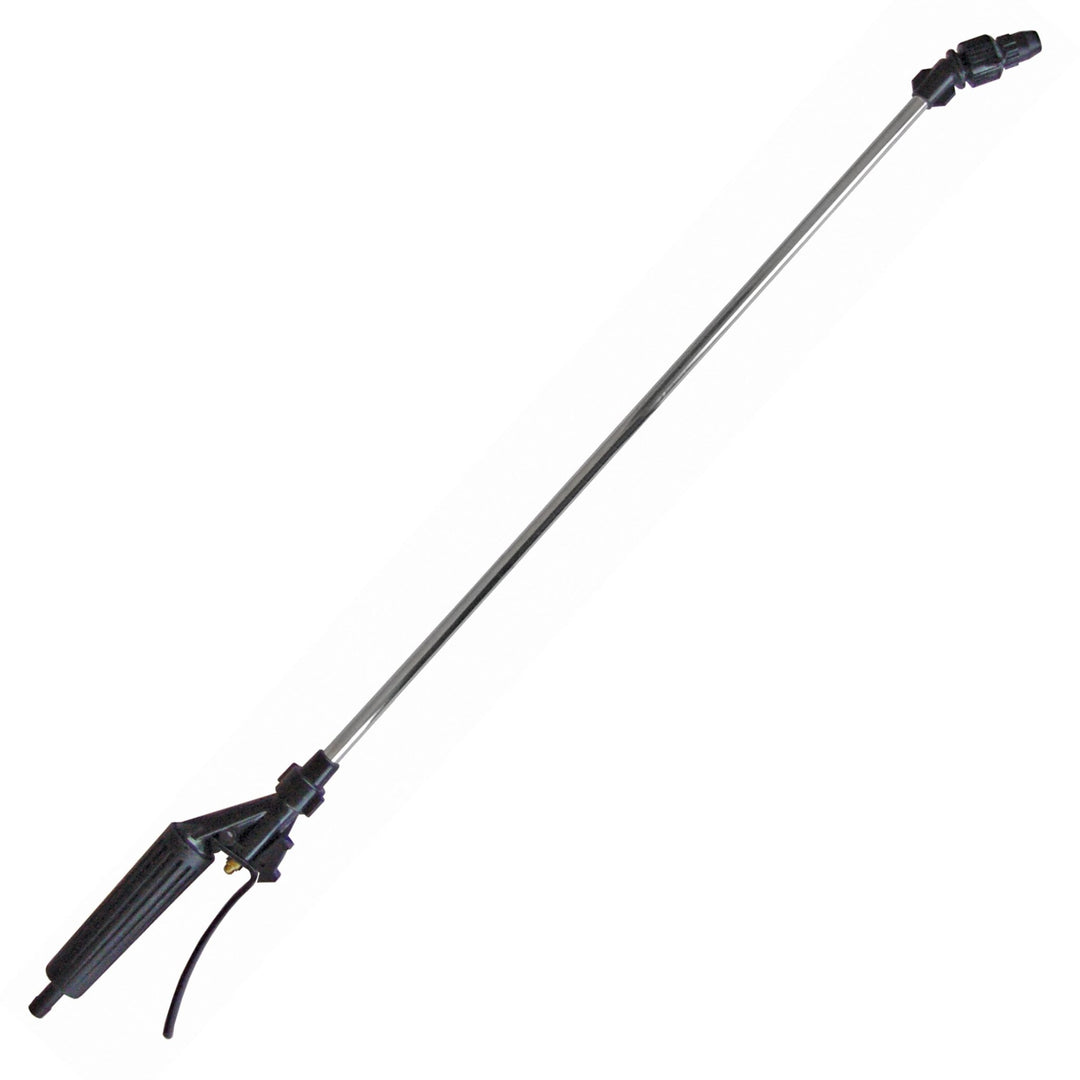

• Lever grip spray wand features an aluminum lance and an adjustable polymer nozzle that delivers 9m of horizontal spray and 5m of vertical spray. Plus 4.5m of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
• Made for spot or broadcast spraying weed control, pest control, fungus control, fertilizing, watering

Product Specs:

• 95L
• 9L/M 60psi high flow pump
• Lever spray wand
• Adjustable pattern tip

• Spray height: 5m
• Horizontal spray distance: 9m
• Power supply: 12V (not included)

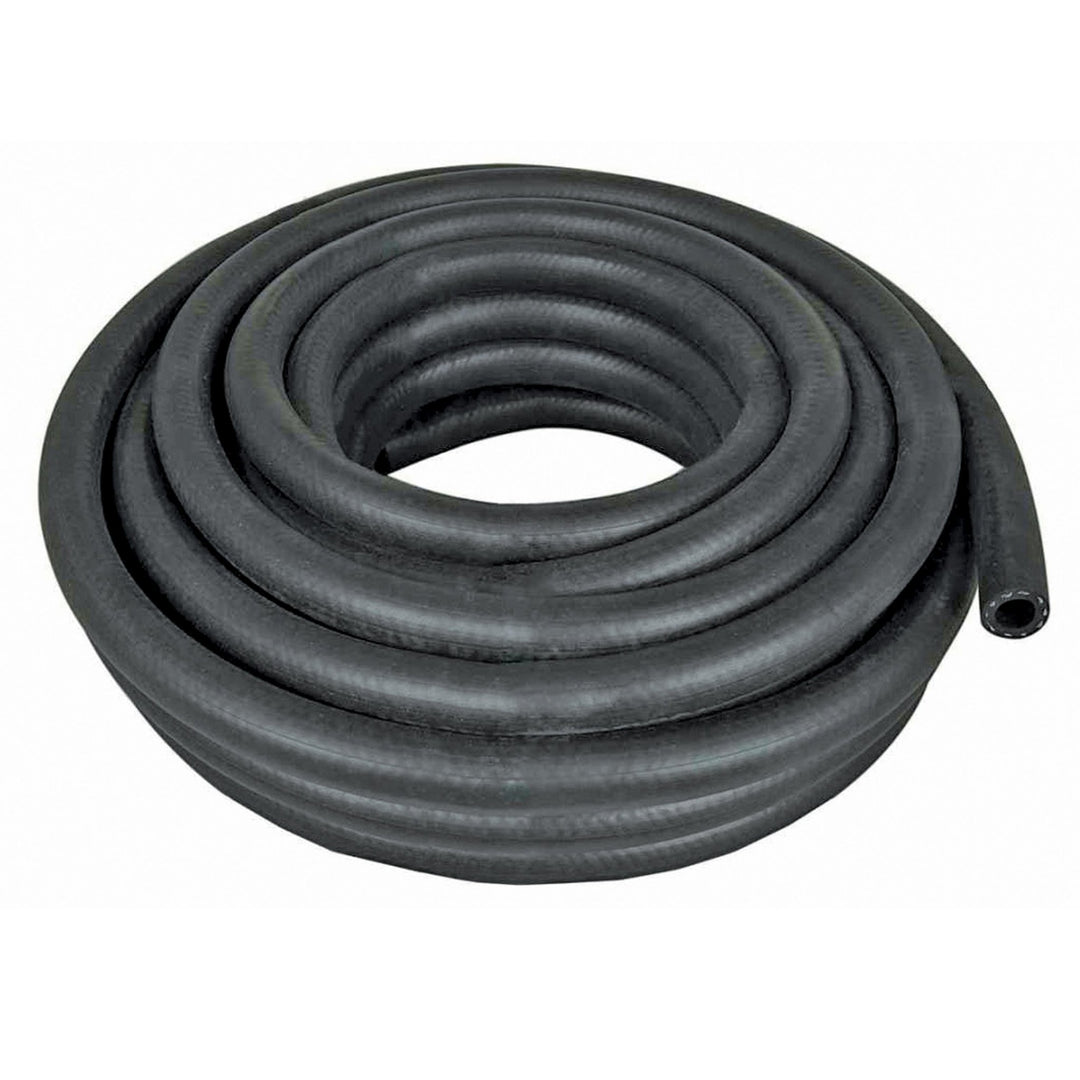

• 4.5m x 10mm hose
• 3.5m wide coverage
• 22.68kg

• Dimensions (mm): 1422 x 508 x 533
